Therma 22 - Thermocouple & Thermistor
Probe Thermometer
Highlights:
Therma 22 thermistor / thermocouple thermometer
- Optional test caps available for checking accuracy
- Wide range of interchangeable probes
- Temperature range -199.9 to 400 °C
- Fast response with high accuracy
- Free traceable certificate of calibration
- Biomaster product protection
- Meets the European Standard EN 13485
- UKAS 3 point certificate available, see below
Product code: 227.022
Description

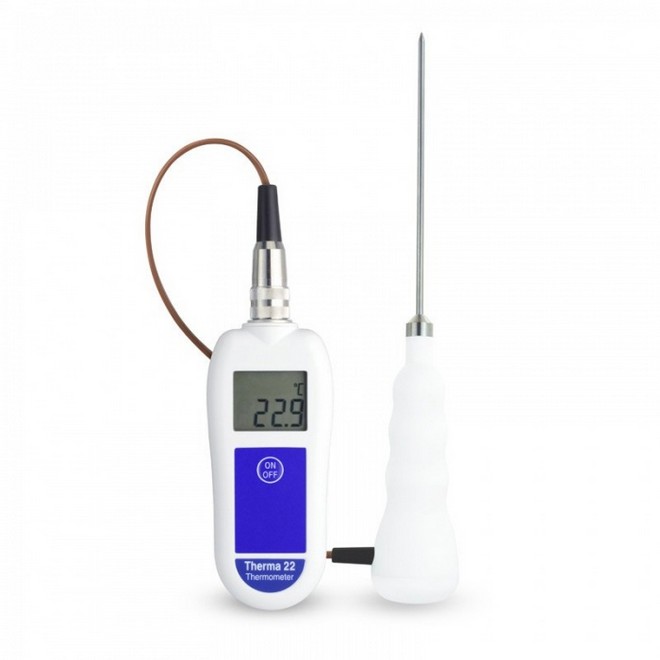

The Therma 22 hand held thermistor and thermocouple thermometer has been specifically designed for those who need the versatility of both the thermocouple and thermistor probes in one compact thermometer.
The thermistor sensor gives greater accuracy for food processing, whilst the type T thermocouple sensor extends the measurement range and provides faster response, if required. Simply plug the probe of your choice into the Therma 22 and the thermometer will take fast, accurate measurements.

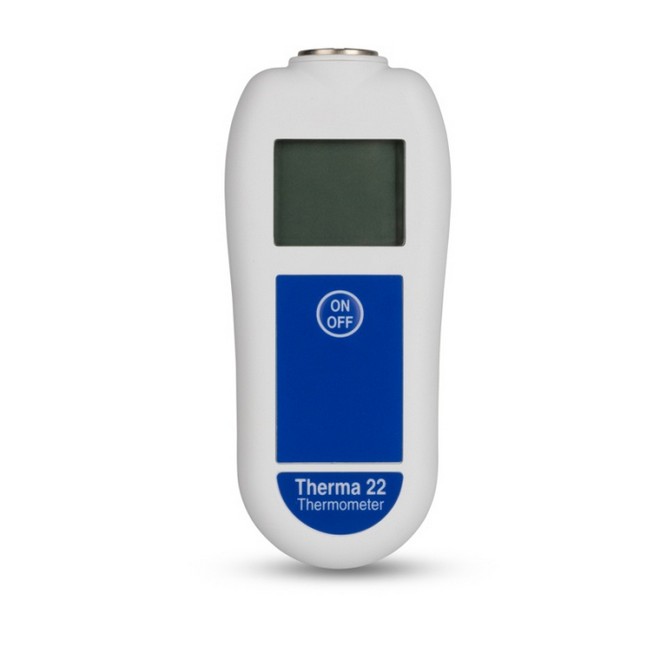

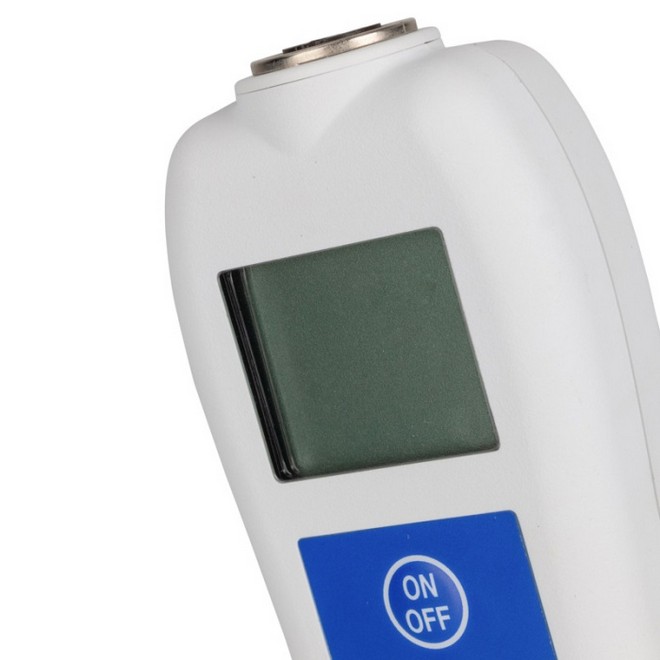

The Therma 22 features an easy-to-read, LCD display with open circuit and low battery indication. The instrument displays temperature over the range of -39.9 to 149.9 °C (thermistor) or over the range of -199.9 to 400 °C (type T thermocouple).

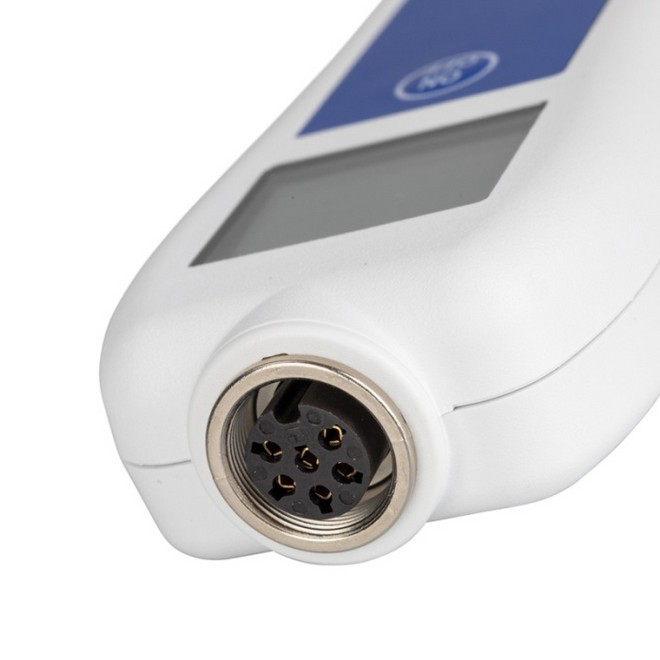

Housed in a robust ABS case that includes Biomaster product protection which reduces bacterial growth. The auto-power-off facility maximises battery life, turning the instrument off automatically after ten minutes. Incorporates a Lumberg screw-locking type connector, allowing a wide range of interchangeable probes to be used. ETI offers an extensive range of interchangeable type T thermocouple probes. The Therma 22 is priced exclusive of probe.
Optional accessories

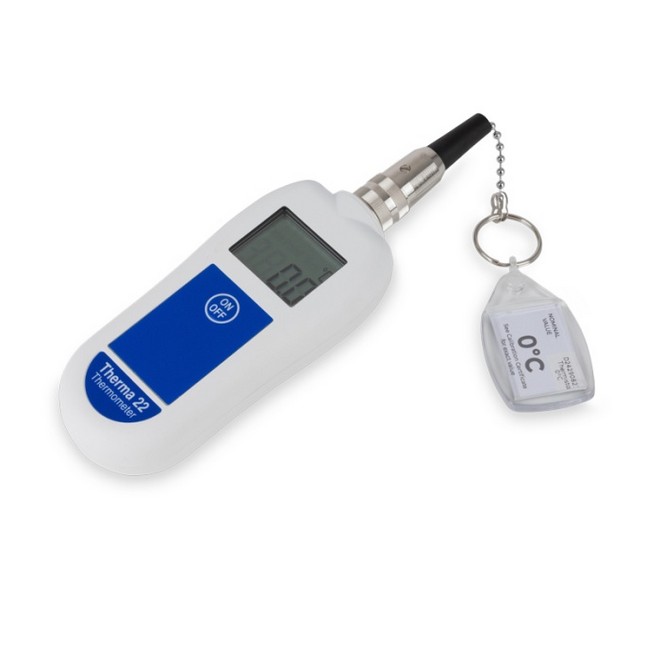

The protective boot helps to protect the instrument against accidental damage and when used makes the instrument splashproof to IP64. The stainless steel wall-mounted thermometer holder stores the instrument safely when not in use (screws not supplied). Thermistor test caps, suitable for testing the accuracy of the Therma 22, are also available.
Product information for download:
Therma 20/22 Plus User Manual
227-022 C of C
Product Detail Reference 227.022 | |
Data sheet | |
Range - T Thermocouple: | -199.9 to 400 °C |
Range - Thermistor: | -39.9 to 149.9 °C |
Resolution: | 0.1 °C to 299.9 °C thereafter 1 °C |
Accuracy - Instrument Only: | ±0.2°C |
System Accuracy - Type T t/c: | ±0.5°C (-49.9 to 149.9°C) |
System Accuracy - Thermistor: | ±0.5°C (-24.9 to 109.9 °C) |
Battery: | 3 x 1.5 volt AAA |
Battery Life: | minimum 5 years (10000 hours) |
Sensor Type: | thermistor/type T thermocouple |
Display: | 12mm LCD |
Dimensions: | 25 x 56 x 128mm |
Weight: | 130 grams |
Case Material: | ABS plastic includes Biomaster product protection |
Country of Manufacture: | United Kingdom |
Guarantee: | two years |
Water/Dust Resistance: | IP64 when using boot (optional accessory) |
Measurement Scale: | Celsius |
Certification: | FREE traceable calibration certificate |
Conforms to Standard: | EN 13485 |
