RayTemp® 8 - Infrared Thermometer
with Type K Thermocouple Socket
Highlights:

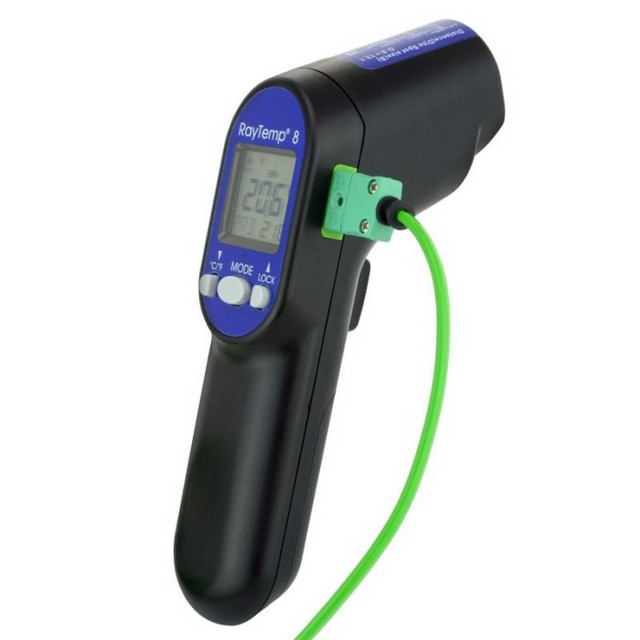

RayTemp 8 Infrared Thermometer with integral type K thermocouple socket
- Temperature range IR -60 to 500 °C, probe -64 to 1370 °C
- Includes differential & average temperatures
- Two-in-one thermometer
- Target ratio 12:1
Product code: 814-045
Description

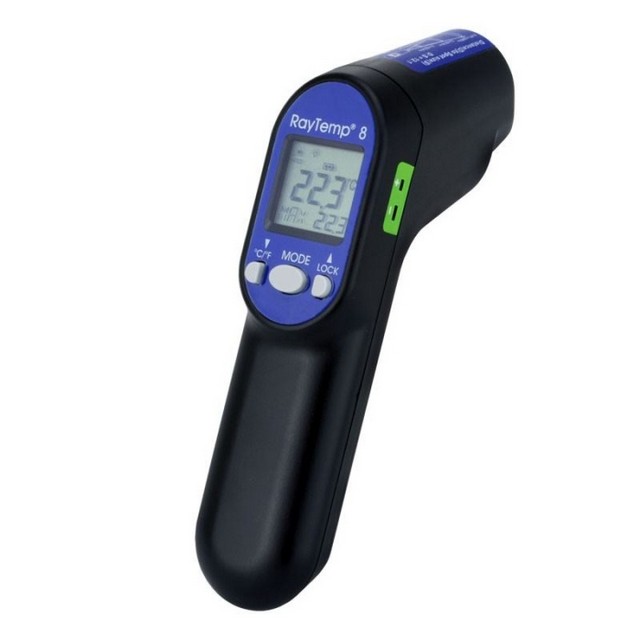

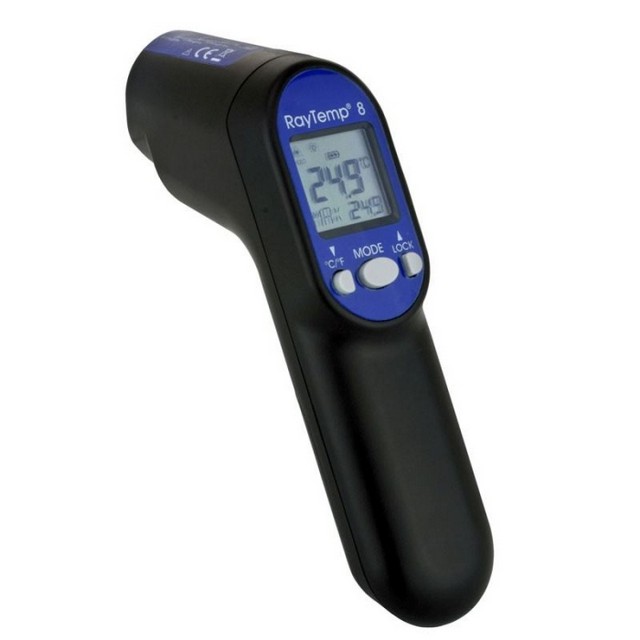

The RayTemp 8 Infrared Thermometer is compact, gun-shaped, lightweight and easy to use. Simply aim, then pull the trigger to display the temperature of the item being measured. The LCD display gives a digital read-out of temperature over the range of -60 to 500 °C.

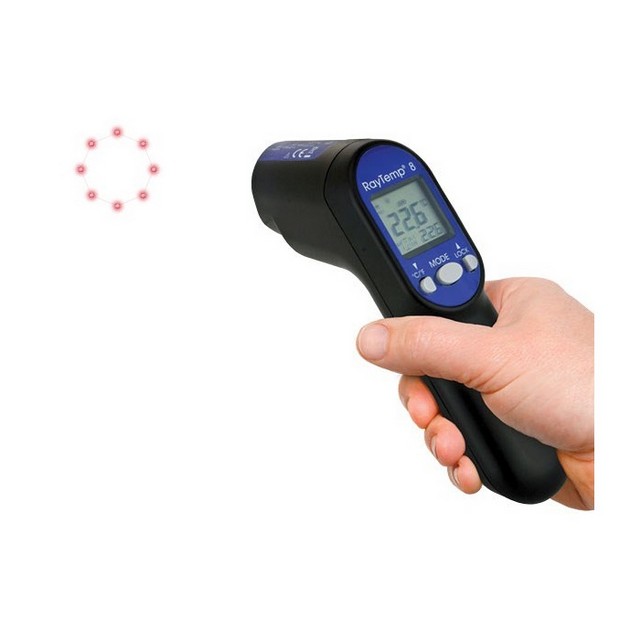

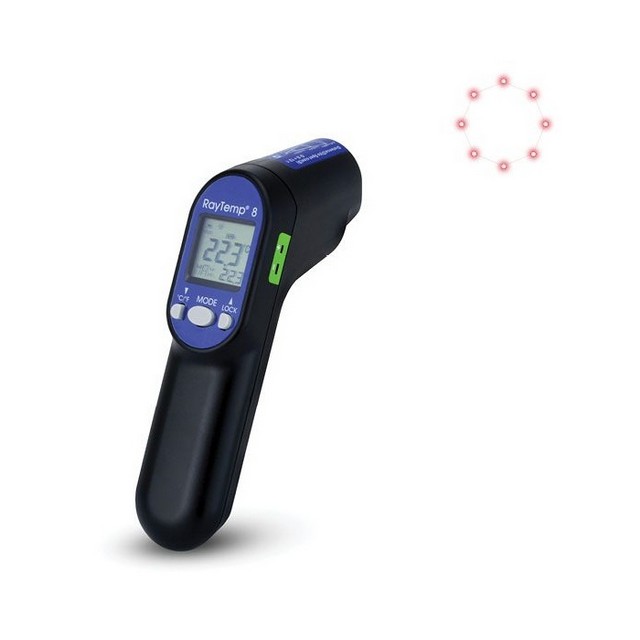

This infra-red thermometer has a clear, easy to read, LCD display with low battery indication and incorporates an auto power off facility that turns the instrument off after 60 seconds, maximising battery life. The RayTemp 8 now features an eight dot circle laser indicator, which allows you to precisely target the diameter of the area to be measured. As you move closer or further from the target the laser circle changes diameter.
The RayTemp 8's three-button keypad allows the user to select °C/°F and max/min. Additionally, the difference between the maximum and minimum temperature and the average temperature can be displayed.
Product information for download:
RayTemp 8 User Manual
814-045 C of C
IR Care Guide
814-045 Battery SDS
Product Detail Reference 814-045 | |
Data sheet | |
Range - Infrared: | -60 to 500 °C |
Range - Probe: | -64 to 1370 °C |
Max/Min: | Yes |
Resolution: | 0.1°C or °F (-9.9 to 199.9°C) or 1°C |
Accuracy - Infrared: | ±2 °C or ±2 % of reading whichever is greater |
Accuracy - Probe: | ±1 °C or ±1 % of reading whichever is greater |
Field of View: | target ratio 12:1 |
Emissivity: | 0.95 default - adjustable 0.01 to 1 |
Battery: | 2 x AAA alkaline |
Battery Life: | 180 hours continuous use |
Display: | custom LCD |
Backlight: | Yes |
Dimensions: | 40 x 66 x 155mm |
Weight: | 185 grams |
Case Material: | ABS plastic |
Guarantee: | one year |
Measurement Scale: | Celsius/Fahrenheit |
